Description
Manufactured in bright zinc plated and yellow passivated mild steel.
Requires a 6mm diameter hole
Overall length = 55mm
Hole depth required = 40mm
Tensile load rating 1.5KN
Eyelet diameter = 6mm
Sold in packs of 100
Usage:

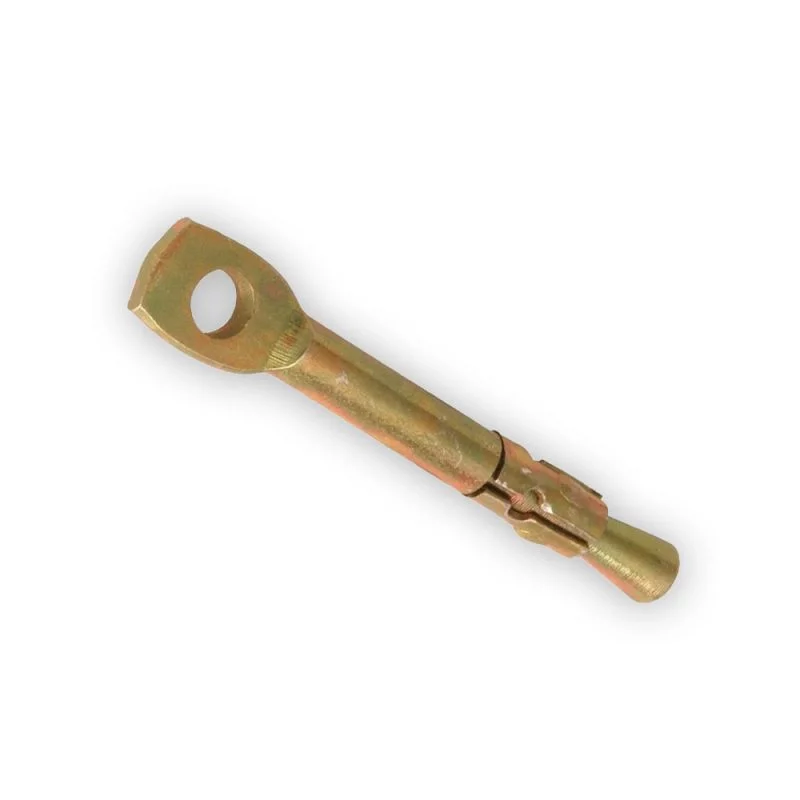

The Wirehanger is an expansion anchor for securing suspension wires in concrete, enabling fast and accurate installations of netting perimeter wire rope systems.
Ideal for use as a fast-fit light-medium duty masonry intermediate fixing
Spacings:
75mm and 50mm mesh nets = 1m
28mm mesh nets = 0.5m
19mm mesh nets = 0.3m
Mark required position of the fixing
Drill a 6mm diameter hole to a minimum depth of 40mm
Brush / blow-out all dust and loose material
Insert fixing fully and pull firmly to lock in position
Do not use fixing less than 35mm from an outside edge or corner
