Description
Solar Spike Speed Clip
Remove warranty conflicts as there is no drilling into the panel frame.
Available in 30, 35 & 40 mm sizes to suit most solar panel frames.

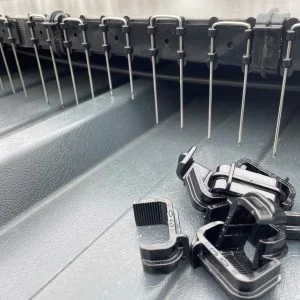

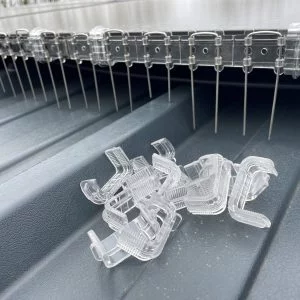

Colour – Please note the video footage is of a 3d printed test clips, the clips can be supplied in clear polycarbonate or black polycarbonate to match the spike bases.
We recommend 6 clips for every 1M of spike purchased.
Choosing and fitting the Solar Spike Speed Clip

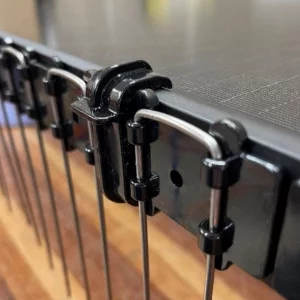

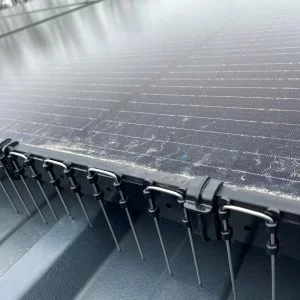

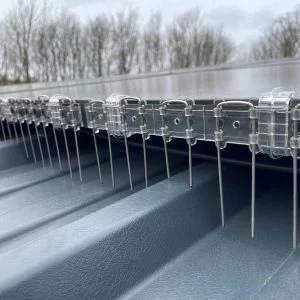

This clip holds the SolarGuard adjustable spike system to the side of the panel frame, as an alternative to bonding the spikes with adhesive. It is for panels without the traditional lip on the underside, and there is no drilling into the frame. It is a different clip from the Solar Mesh Speed Clip, which holds solar mesh rather than spikes.
Specification
| Sizes | 30mm, 35mm and 40mm, to suit most solar panel frames |
|---|---|
| Colours | Clear or black, to match the spike bases |
| Material | UV stabilised polycarbonate |
| Fixing | Clips on to the side of the panel frame; no drilling into the frame |
| Recommended quantity | 6 clips for every 1m of spike |
| Spikes it holds | SolarGuard 100mm, 130mm, 160mm and 210mm adjustable solar spikes |
How many spike clips do I need?
We recommend 6 clips for every metre of spike. SolarGuard spikes are sold by the linear metre, so 10m of spike needs 60 clips.
Which size do I need?
Choose 30mm, 35mm or 40mm to suit your panel frame. If you are not sure which fits, call us free on 0800 0687279 before you order.
What is the difference between this and the mesh speed clip?
This clip holds the SolarGuard spike system, at 6 clips per metre. The Solar Mesh Speed Clip holds solar mesh, at 5 clips per metre.
Do I have to drill the panels?
No. The clip fixes to the side of the frame without drilling, which removes warranty conflicts.

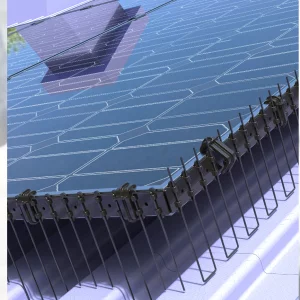

See all four lengths of adjustable spike below, and our solar panel pigeon proofing cost guide to compare spikes with mesh on price.
| SolarGuard spike | Spike length before trimming | Colours |
|---|---|---|
| SolarGuard 100mm | 100mm | Clear or black |
| SolarGuard 130mm | 130mm | Clear, black or black-black |
| SolarGuard 160mm | 160mm | Clear or black |
| SolarGuard 210mm | 210mm | Clear or black |
All wild birds, including feral pigeons and gulls, are protected by law, so check for active nests before you fit anything and never disturb one. Our page on bird control and the law explains what you can and cannot do.
