Description

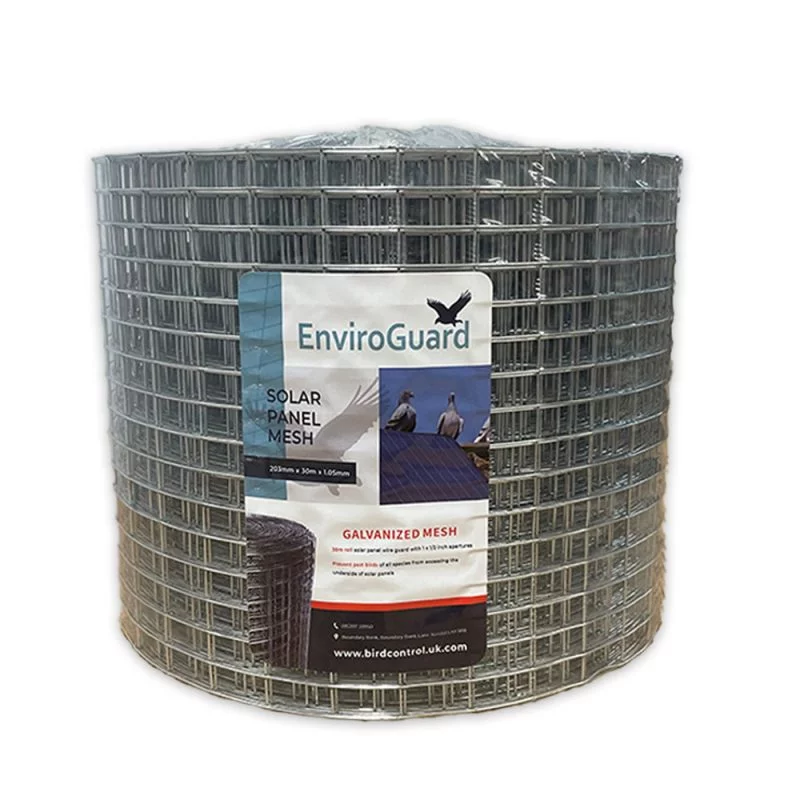

Manufactured from: 19 gauge hot dipped galvanized wire. Mesh Size: 25mm X 12.5mm (1″ X 1/2″) Roll Width: 200mm (12″) Roll Length: 30m (100ft)
Usage: Ideal for use in screening solar panels to prevent feral pigeons from accessing the underside of the panel.
Compatible with all Enviroguard Solar Panel Mesh Clips
The wire mesh is supplied in rolls. The preferred technique is to cut it into six-foot lengths and straighten before getting onto the roof.
Choosing the Galvanized Solar Mesh Roll
This is the plain galvanised solar mesh, for screening the gap under solar panels so feral pigeons cannot get underneath. Choose black PVC coated mesh if you want a darker finish, or stainless steel for coastal areas or where stainless has been specified.
Specification
| Wire | 19 gauge hot dipped galvanised |
|---|---|

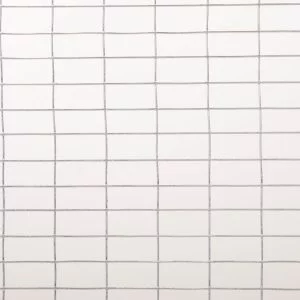

| Aperture | 25mm x 12.5mm (1″ x 1/2″) |
| Roll size | 200mm wide x 30m long |
| Clips | Fits all EnviroGuard solar panel mesh clips |
| Tip | Cut into lengths and straighten before you go on to the roof |
Which 30m solar mesh roll?
| Roll | Wire | Aperture | Roll size | Finish |
|---|---|---|---|---|
| Galvanized Solar Mesh Roll 30M | 19 gauge hot dipped galvanised | 25mm x 12.5mm | 200mm x 30m | Silver galvanised |
| PVC Coated Solar Mesh Roll 30M | Hot dipped galvanised, then PVC coated | 25mm x 12.5mm | 200mm x 30m | Black |
| Stainless Steel Solar Mesh Roll 30M | 1.05mm grade 304 stainless steel | 25mm x 12.5mm | 200mm x 30m | Stainless, for coastal sites or where stainless is specified |
How many rolls do I need?
Add up the lengths of all the sides of your solar array to get the perimeter, then add 1 to 2m for joints and corners. One roll is 30m long, so a 40m perimeter plus 2m needs two rolls.
Which clips does it work with?
The 25mm x 12.5mm mesh fits all EnviroGuard solar mesh clips. Use the Solar Mesh Speed Clip (5 per metre) if your panels have no lip on the underside, or the premium adjustable or push fit clips (2 per metre) if they have a return lip.
Is there a kit with clips included?

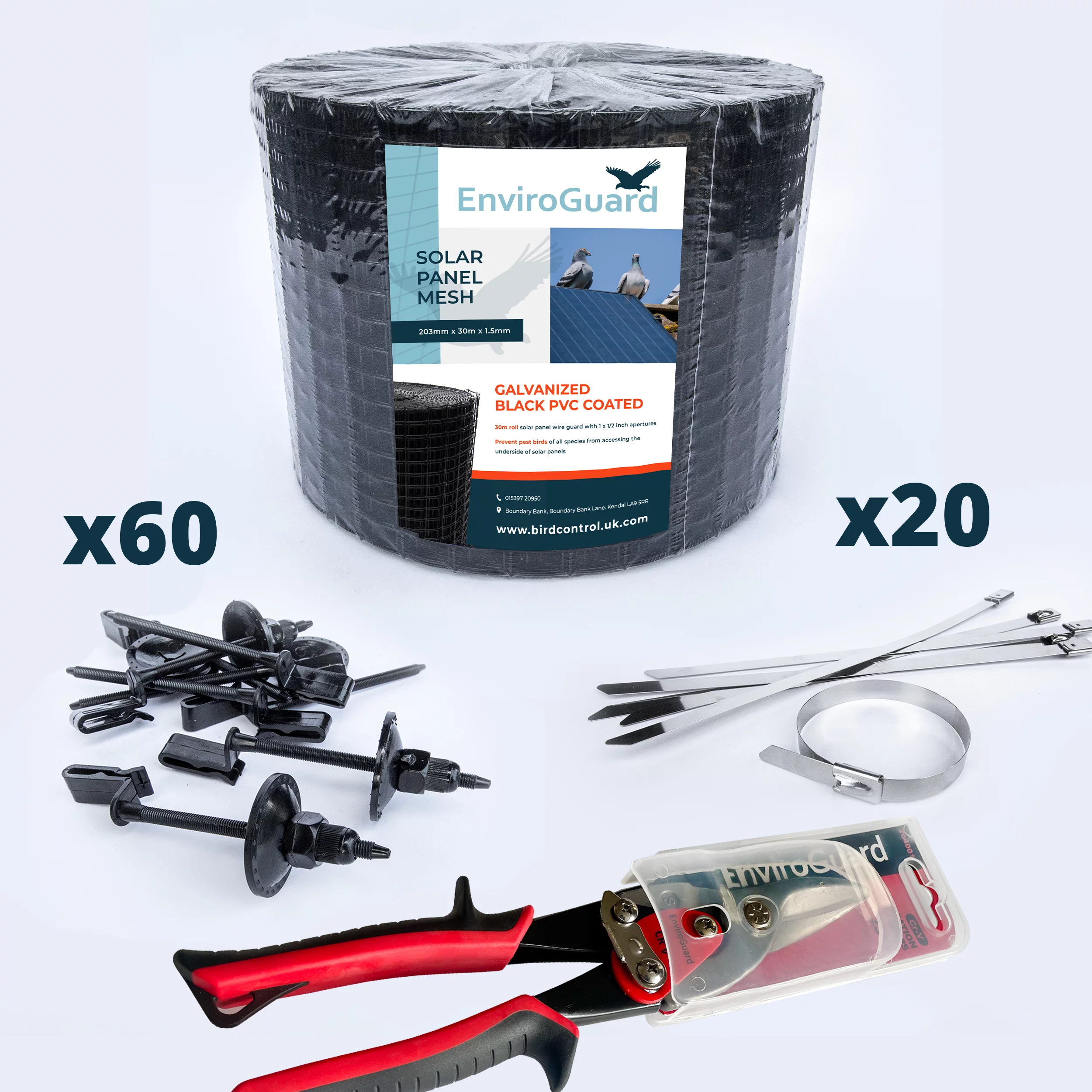

Yes. Each 30m kit pairs a roll with the right number of clips, a cutting tool and stainless steel corner ties. See the kits on our solar panel pigeon proofing cost guide, which compares them all.
For the full fitting method, step by step, see our solar mesh installation guide.
All wild birds, including feral pigeons and gulls, are protected by law, so check for active nests before you fit anything and never disturb one. Our page on bird control and the law explains what you can and cannot do.
